The Unified Modeling Language (UML) is a standard graphical notation for describing software structure and behavior. It merged the object-oriented methods of Grady Booch, James Rumbaugh, and Ivar Jacobson at Rational Software in the mid-1990s and became an Object Management Group (OMG) standard in 1997. The current version, UML 2.5.1, was published in December 2017.

UML is large, and most teams use a small part of it. In Marian Petre’s 2013 interview study of 50 professional software engineers at 50 companies, 35 didn’t use UML at all, and among those who used it selectively, only one found use case diagrams useful. The practical skill is knowing which few diagrams answer which questions, and how much precision each one needs.

Sketch, Blueprint, or Program

Martin Fowler describes three ways teams use UML, and they call for very different levels of rigor.

Mode	What the diagram is for	Precision needed
Sketch	Communicating or exploring one aspect of a design, on a whiteboard or in a document, then often discarded	Only enough notation that readers interpret it the same way
Blueprint	A detailed design someone else implements, or documentation of a system that has to stay accurate	Complete and consistent within its scope
Programming language	A model precise enough that tools generate executable code from it	Formal, tool-checked

Most everyday value comes from sketches. A sequence diagram drawn to settle how a retry interacts with a timeout doesn’t need every arrowhead to be spec-exact, but it does need a solid line to mean a call and a dashed line to mean a return, so that readers don’t argue about what it says. Blueprint use persists where contracts or regulation demand design documentation. Generating code from models, once promoted as model-driven architecture, survives mainly in specialized domains such as embedded and safety-critical systems.

The Fourteen Diagram Types

UML 2.5.1 defines fourteen diagram types, split between structure (what the system is made of) and behavior (what it does over time).

Group	Diagram	Shows	Everyday use
Structure	Class	Types, their attributes and operations, and relationships	Common
Structure	Object	Specific instances and their links at one moment	Occasional, to illustrate a tricky class diagram
Structure	Package	Grouping of model elements and dependencies between groups	Occasional
Structure	Composite structure	Internal parts and connectors of a class or component	Rare
Structure	Component	Replaceable parts with provided and required interfaces	Occasional
Structure	Deployment	Artifacts placed on nodes and communication paths	Occasional
Structure	Profile	Extensions of UML itself through stereotypes	Rare, for tool builders
Behavior	Use case	Actors and the goals the system serves for them	Occasional
Behavior	Activity	Flow of actions, decisions, and parallel work	Common
Behavior	State machine	States of one object and the events that move it between them	Common for stateful entities
Interaction	Sequence	Messages between participants in time order	Common
Interaction	Communication	The same messages as a sequence diagram, arranged by links instead of time	Rare
Interaction	Interaction overview	An activity-style flow whose nodes are interactions	Rare
Interaction	Timing	State changes of participants against a time axis	Rare, mostly real-time and embedded

Interaction diagrams are a subgroup of behavior diagrams. The rest of this guide covers the seven in bold.

Structure Diagrams

Class Diagrams

A class diagram shows types, what each holds and can do, and how they relate. The same diagram can be drawn from three perspectives, and the perspective decides how much detail belongs on it.

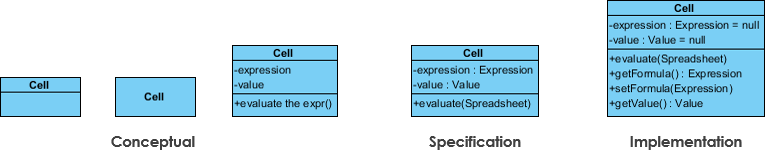

A conceptual class diagram names domain concepts and their relationships, with little or no attribute detail. It suits early discussion of a domain with people who don’t read code. A specification diagram adds types and operation signatures, describing interfaces without committing to an implementation. An implementation diagram mirrors the code, including defaults and every accessor. Implementation diagrams go stale fastest, and when needed they are usually better generated from the code than drawn.

Each class is a box with up to three compartments for name, attributes, and operations. Members carry a visibility marker, which is + for public, - for private, # for protected, and ~ for package. Operation parameters can state a direction, in, out, or inout, which matters when a sketch documents an API whose parameters are modified in place.

Six relationship lines carry most of a class diagram’s meaning:

Relationship	Notation	Meaning
Association	Solid line, optionally with an open arrowhead for navigability	Instances of one type hold or reference instances of the other
Generalization (inheritance)	Solid line, hollow triangle at the parent	The child is a kind of the parent
Realization	Dashed line, hollow triangle at the interface	The class implements the interface
Dependency	Dashed line, open arrowhead	One type uses the other, for example as a parameter, without holding it
Aggregation	Solid line, hollow diamond at the whole	A whole-part association where parts can exist independently
Composition	Solid line, filled diamond at the whole	A part belongs to one whole at a time, and is deleted with it

Associations also carry multiplicity at each end, such as 1, 0..1, *, or 1..*, which states how many instances take part. The UML specification itself notes that the precise meaning of aggregation varies by application area and modeler, so teams often skip it and use a plain association, reserving the diamond for composition, where the lifetime rule is unambiguous.

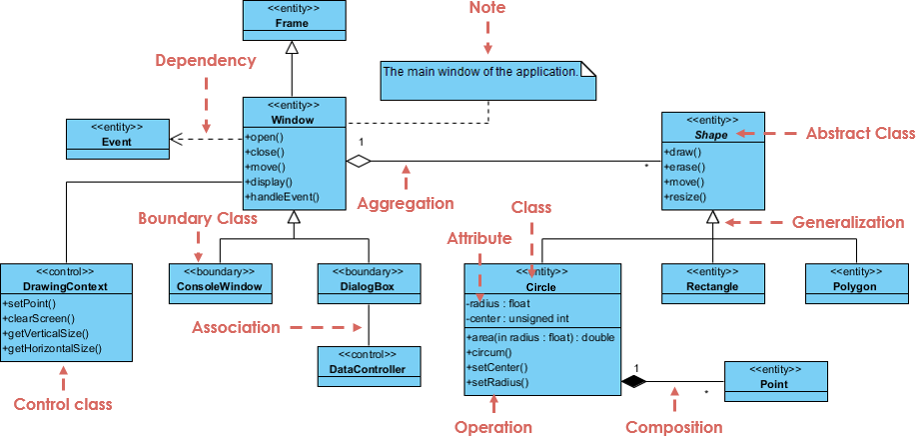

A fuller diagram combines these, and can also use stereotypes such as «entity» and «interface» to mark the role each class plays, and an italic name to mark an abstract class:

A class diagram earns its place for a core domain model whose relationships and multiplicities are the design, or for an unfamiliar area of code that a newcomer needs mapped. Keeping it focused on one subsystem, and showing only the members that matter to the point being made, keeps it readable.

Component Diagrams

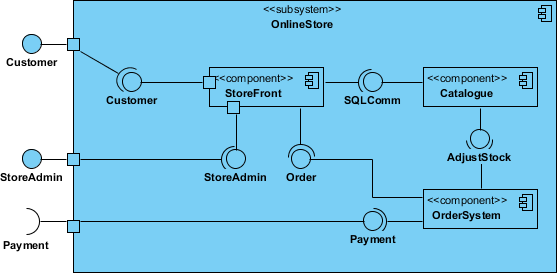

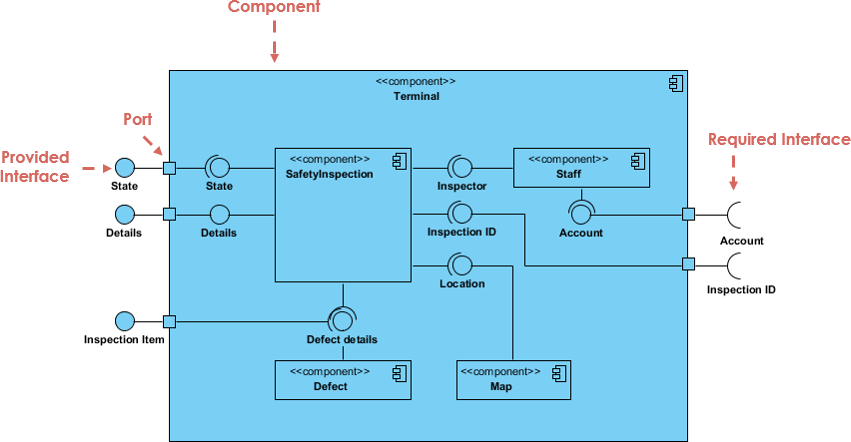

A component diagram shows replaceable parts of a system and the interfaces that connect them. A provided interface is drawn as a circle, or lollipop, and a required interface as a half-circle socket. Where one component’s socket meets another’s lollipop, the dependency is satisfied. Ports are small squares on a component’s boundary where interfaces attach, which lets a component expose an interface that is implemented by a part inside it.

Component diagrams are most useful when the interfaces between parts are the design decision, such as a plugin system, a set of modules with enforced boundaries, or a replacement plan for one part of a larger system. For showing how a system’s applications, services, and data stores communicate, many teams now draw architecture-level structure views such as C4 container diagrams instead, which carry technology and protocol labels that UML component diagrams leave out.

Deployment Diagrams

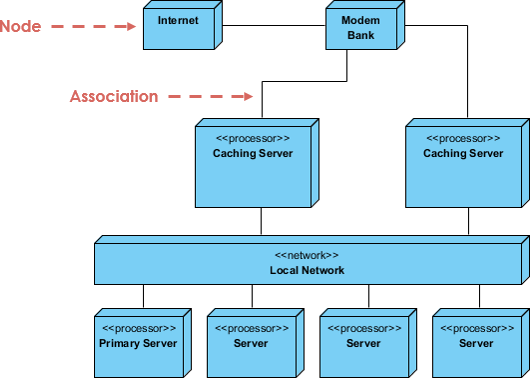

A deployment diagram shows nodes, drawn as three-dimensional boxes, which represent hardware devices or execution environments such as a server, a virtual machine, a container runtime, or a database server. Artifacts, such as an executable, a container image, or a configuration file, are deployed onto nodes. Communication paths between nodes show which can talk to which.

The diagram helps when placement is what’s being decided, such as which tier sits in which network zone, where a cache lives relative to the servers that read it, or which environments exist. It stops helping once it tries to capture everything a cloud infrastructure-as-code template already records. Labeling paths with protocols and marking security boundaries tends to add more than drawing every node.

Behavior Diagrams

Sequence Diagrams

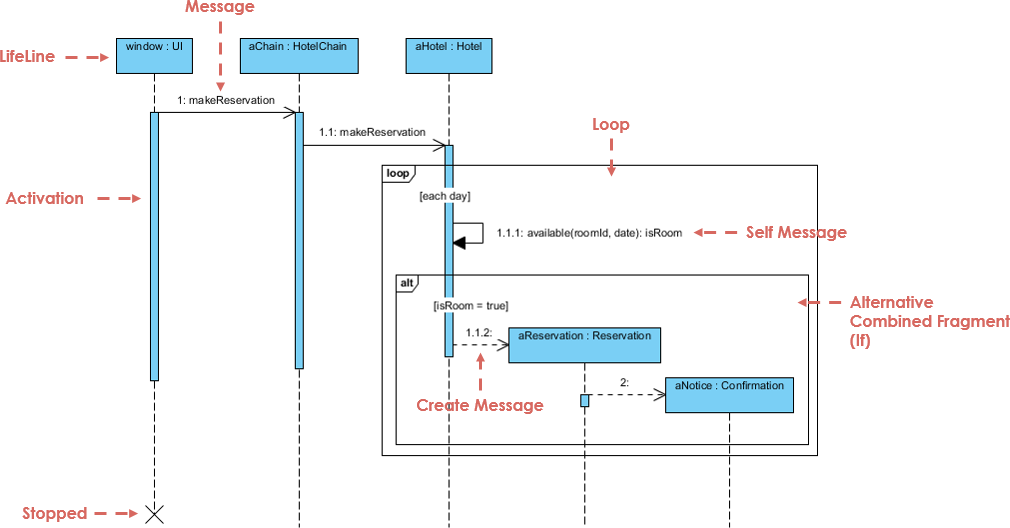

A sequence diagram shows participants as lifelines, vertical dashed lines headed by a name, with messages as horizontal arrows ordered top to bottom in time. A thin bar on a lifeline, the activation, shows when that participant is executing.

The arrow style carries meaning:

Notation	Meaning
Solid line, filled arrowhead	Synchronous call, the sender waits
Solid line, open arrowhead	Asynchronous message, the sender continues
Dashed line, open arrowhead	Reply to an earlier call
Dashed line to the head of a new lifeline	Creation of that participant
An X at the bottom of a lifeline	Destruction of that participant

Combined fragments are labeled frames that add control flow. alt shows alternatives with guards, opt an optional section, loop repetition, par parallel sections, and break an early exit. A ref frame points to another sequence diagram, so one large flow can be split into readable parts.

Sequence diagrams suit flows where the order of messages is the question, such as an authentication handshake, a saga’s compensation path, or how retries and timeouts interact across three services. One scenario per diagram, including the error path that prompted the diagram in the first place, keeps them readable. A diagram that tries to show every branch in alt frames tends to become harder to follow than the code.

Activity Diagrams

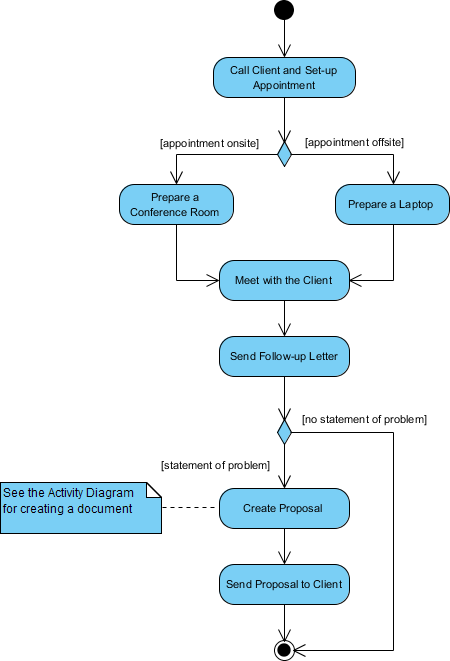

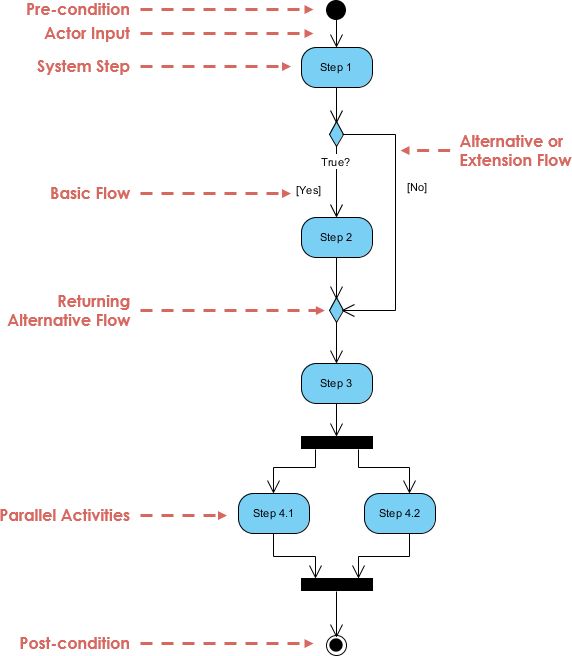

An activity diagram shows a flow of actions, closer to a flowchart than any other UML diagram but able to show parallel work. It starts at a filled initial node and ends at a bullseye activity final node. Rounded rectangles are actions. A diamond is a decision when one flow enters and guarded flows leave, and a merge when several alternative flows rejoin. A thick bar is a fork when it splits one flow into parallel flows, and a join when it waits for parallel flows to finish.

The distinction between a merge and a join has consequences. A merge passes along whichever single branch arrives, while a join waits for all of its parallel inputs. Using a join where branches are alternatives describes a process that never completes.

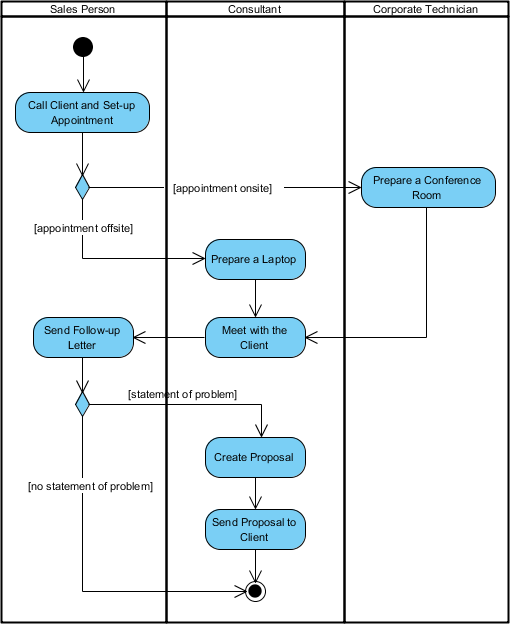

Partitions, commonly called swimlanes, assign each action to the role or system that performs it. Handoffs between partitions are where delays and errors often concentrate in a business process, so swimlanes make them visible.

Activity diagrams fit business workflows, multi-step jobs with parallel branches, and approval processes, especially when non-developers need to validate the flow. Teams modeling business processes alone often use BPMN instead, which covers similar ground with notation that business analysts more commonly know.

State Machine Diagrams

A state machine diagram shows the states one object moves through and the events that move it. Each transition is labeled trigger [guard] / effect, where the trigger is the event, the guard is a condition that must hold, and the effect is what happens during the transition. A filled circle marks the initial state and a bullseye a final state.

The diagram shows as much by what’s missing as by what’s drawn. There is no cancel transition from Shipped, so an order can’t be cancelled after dispatch, and a paymentReceived event while stock is unavailable leaves the order in Pending. States can also declare entry, exit, and do behaviors, and a composite state can contain its own nested state machine.

State machine diagrams tend to stay accurate longer than most UML diagrams, because the states and transitions of an order, a payment, a subscription, or a workflow are business rules that change far less often than the code implementing them. They also map directly to tests, one per transition plus one per event that should be rejected in each state.

Use Case Diagrams

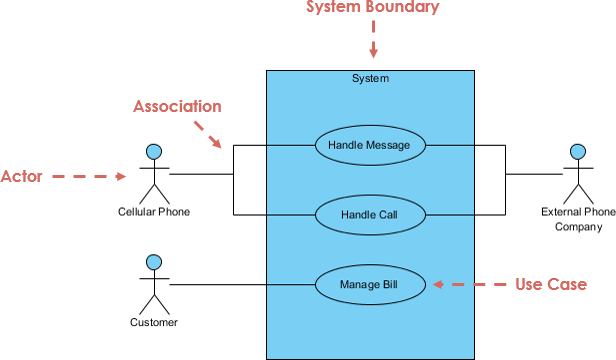

A use case diagram shows actors, the people or external systems that interact with the system, drawn as stick figures, and use cases, the goals the system fulfills for them, drawn as ovals inside a system boundary. Lines associate actors with the use cases they take part in.

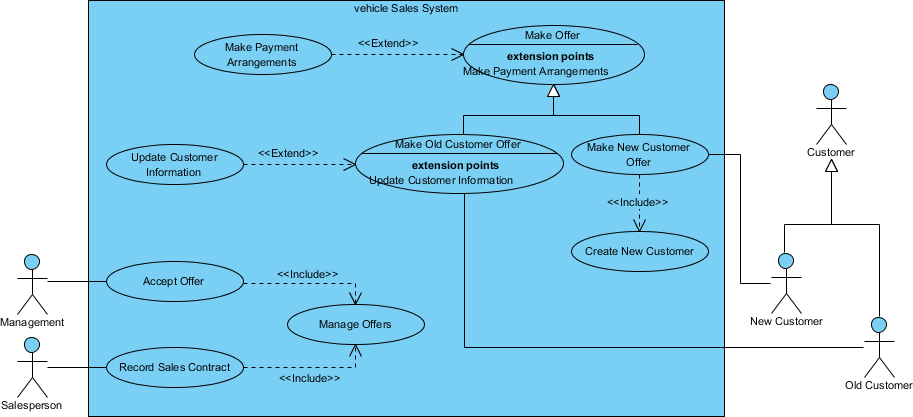

Three relationships connect use cases and actors. Include is a dashed arrow from a base use case to behavior it always performs, factored out because several use cases share it. Extend is a dashed arrow from an optional use case to the base use case it can add behavior to, at a named extension point, under some condition. Generalization makes one actor or use case a specialized kind of another. The arrows point in opposite directions for include and extend, which is the most common error on these diagrams.

The diagram is a table of contents. The requirements live in the written use case behind each oval, with its main success scenario, alternatives, and failure handling. A use case diagram helps scope a system with stakeholders, and it adds little once that scope is agreed, which fits Petre’s finding that practitioners rarely find it useful on its own.

Choosing a Diagram

Starting from the question, rather than from the diagram types, avoids drawing diagrams nobody needed.

Question	Diagram
What are the core domain concepts and how are they related?	Class, conceptual perspective
What does this module’s public API look like?	Class, specification perspective
In what order do these participants call each other, and what happens on failure?	Sequence
Which states can this entity be in, and what moves it between them?	State machine
What are the steps of this process, who does each, and what runs in parallel?	Activity with partitions
Which parts can be replaced independently, and through which interfaces?	Component
What runs where, and which nodes can talk to each other?	Deployment
What goals does the system serve, and for whom?	Use case, backed by written use cases

Keeping Diagrams Useful

Text-based tools make UML diagrams reviewable alongside code. PlantUML covers most UML diagram types from a text description, and Mermaid renders class, sequence, and state diagrams inline in Markdown on platforms that support it. The source lives in version control, so a change to a diagram shows up in a pull request next to the code it describes. Graphical modeling tools remain useful for blueprint-mode work where a model is shared across many diagrams.

Generating diagrams from code, which many IDEs and modeling tools can do for class and dependency views, keeps implementation-level diagrams accurate at no maintenance cost. Hand-drawn diagrams are better reserved for what code can’t show directly, such as intended states and transitions, a flow across services, or a conceptual model.

Common Pitfalls

• Modeling everything. Diagrams of simple, well-understood code cost time to draw and maintain and tell readers nothing the code doesn’t. Focus on complex, risky, or frequently misunderstood areas.
• Implementation-level class diagrams drawn by hand. They drift from the code within weeks. Generate them, or draw at the conceptual or specification perspective instead.
• One sequence diagram for every path. Nested alt frames covering every branch are harder to read than the code. Draw the main scenario and the one error path that matters.
• Join bars used as merges. An activity diagram that joins alternative branches describes a process that waits forever.
• Reversed include and extend arrows. Include points to the shared behavior. Extend points to the use case being extended.
• Aggregation used without agreement on its meaning. The specification leaves its semantics open, so readers interpret the hollow diamond differently. Use a plain association or composition.
• Precise notation for a sketch, or loose notation for a blueprint. A whiteboard sketch doesn’t need every stereotype, and a design handed to another team can’t rely on arrowheads readers have to guess at.

Quick Reference

Diagram	Key notation	Best for
Class	Compartments, visibility, association, generalization, composition, multiplicity	Domain models, API shape
Component	Provided and required interfaces, ports	Module boundaries, plugin architectures
Deployment	Nodes, artifacts, communication paths	Placement and network zone decisions
Sequence	Lifelines, sync and async messages, combined fragments	Cross-service flows, protocols, error paths
Activity	Actions, decision and merge, fork and join, partitions	Business processes, parallel workflows
State machine	States, trigger [guard] / effect transitions	Order, payment, and workflow lifecycles
Use case	Actors, use cases, include, extend, system boundary	Scoping with stakeholders
